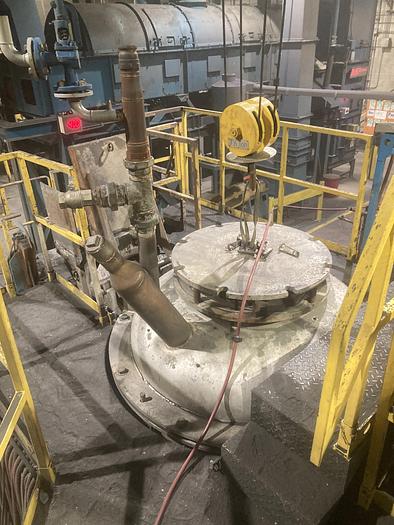

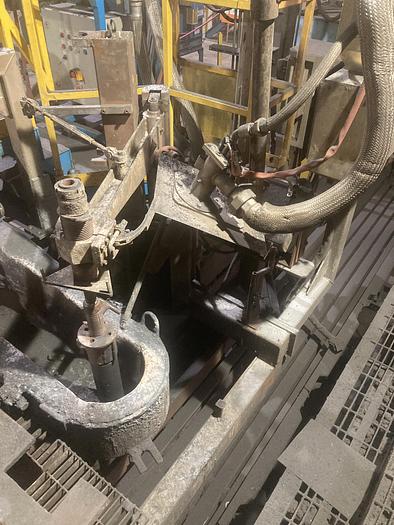

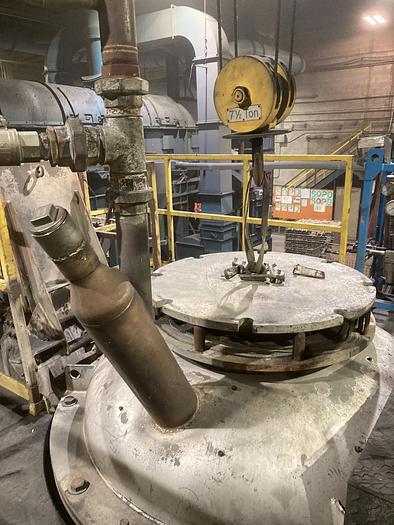

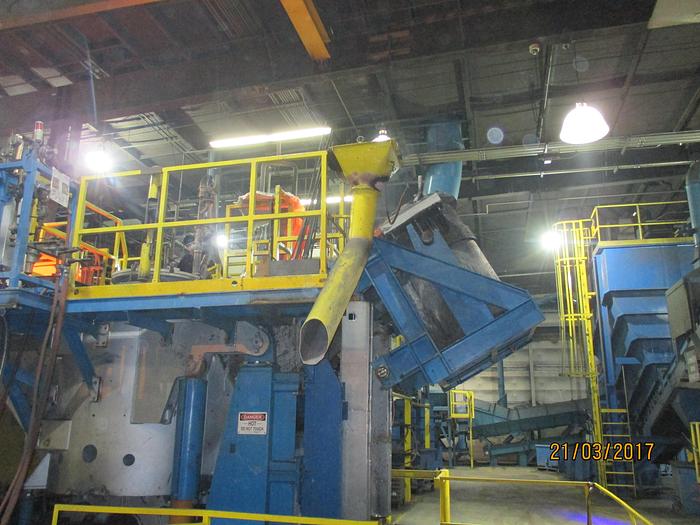

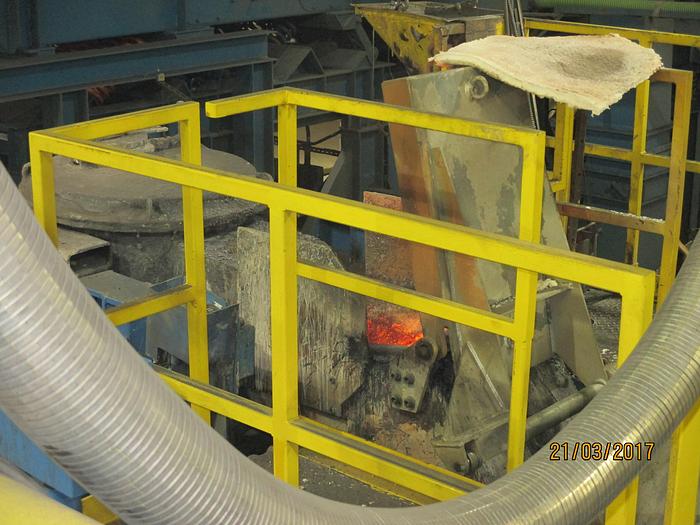

2013 OTTO JUNKER AUTOMATIC POURING INDUCTION FURNACE

OTTO JUNKER Auto Pour Furnace Furnace type – RGD Ge 4/250, Useful tapping weight – 8818 pounds, Heel – 3527 pounds

Total holding capacity – 12,345 pounds, Filling station capacity – 3000 pounds

Power input – 250 KW, Connected load of pouring furnace – 275 KVA

Control voltage – 115 V, Control circuit – 150 amps, Supply voltage – 460 V

Includes:

Koins (Now Viking) Line laser Autopour system

Ladle lifting device

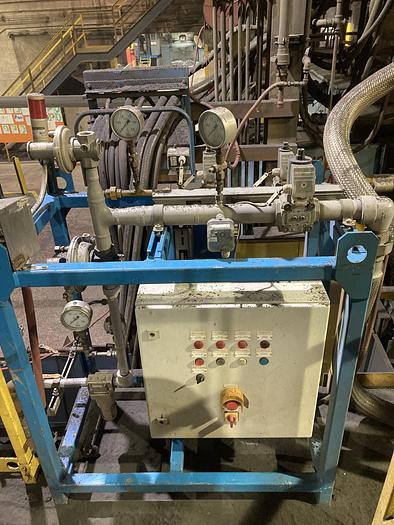

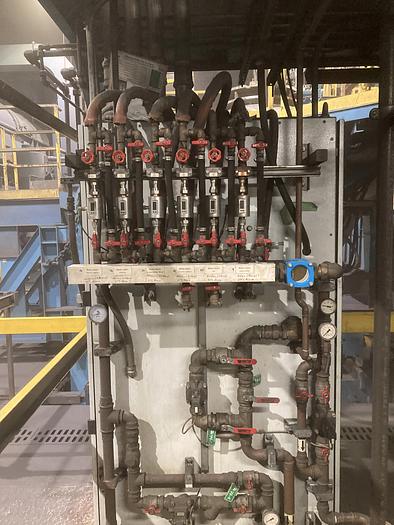

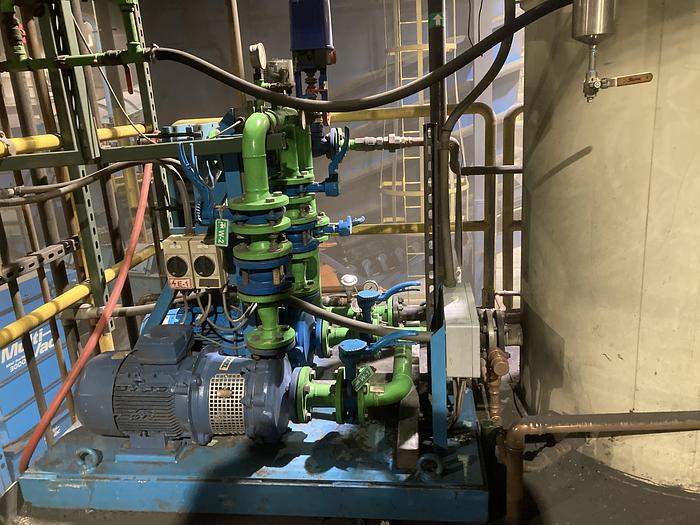

Furnace cooling system

Extra furnace body, receiver, pour box, main cover and center plug all cast/lined with Allied material

Body, throat, pour box, receiver, and center plug forms

Extra complete inductor

Hardware kit for assembly of inductor from Duca

Rebuilt new core and coil from Duca

New bushing Duca

Reconditioned inductor case from Duca

(3) 3,000 lb capacity transfer ladles for production with lining

1 back tilt ladle & 1 ladle roll over fixture

110 Vesuvius Stopper rods Vesuvius

123 Vesuvius Nozzles

2 Stopper rod holders

Blanking plate for throat

Miscellaneous jigs and stands for inductor assembly and hanging inductor
